Description

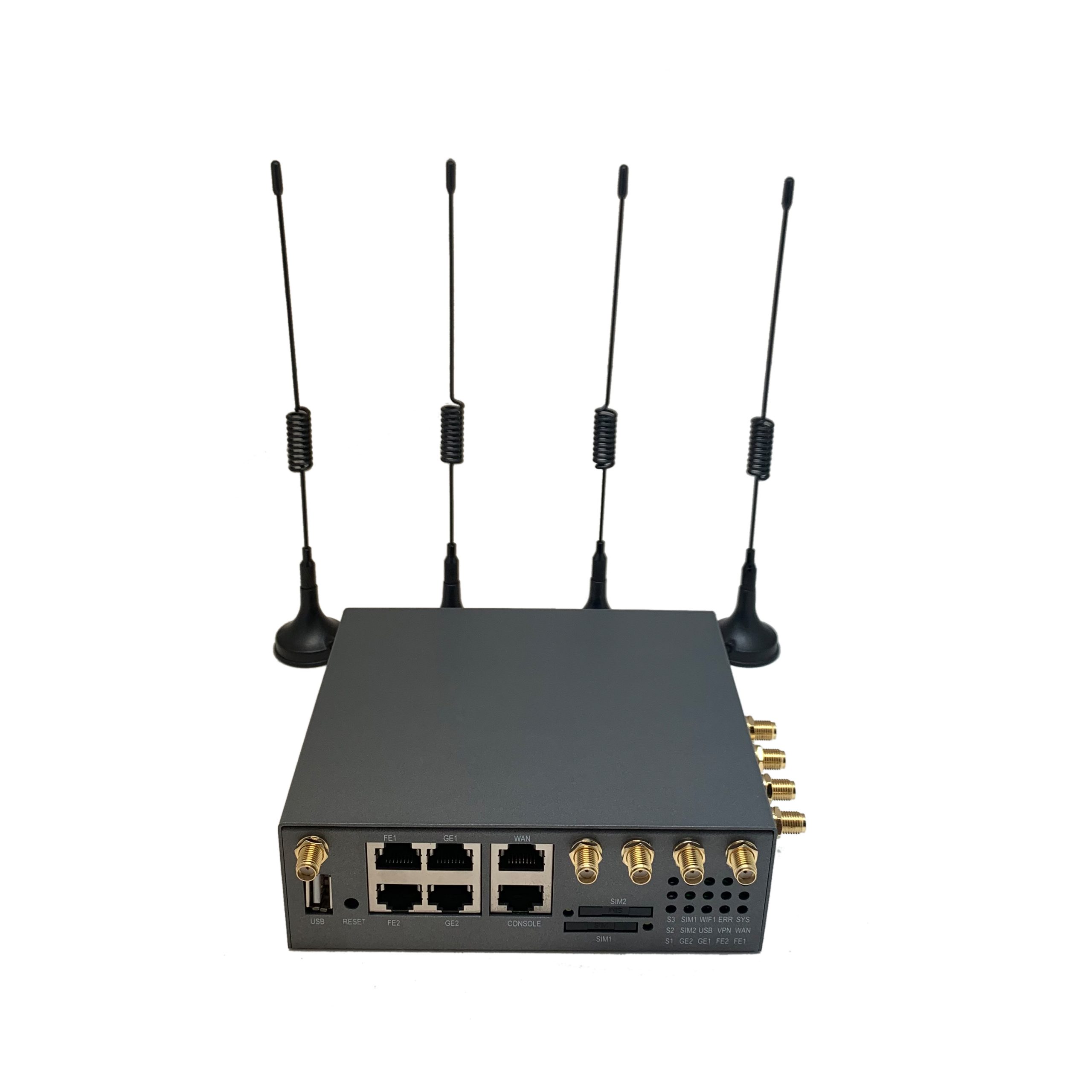

H900 CAT6 4G Router with Gigabit Ethernet and 802.11 AC hi speed WiFi
The E-Lins H900 Series is a compact, ruggedized Gigabit Ethernets 3G/4G/LTE router, with option feature of Dual/Tri Band Wi-Fi (2.4Ghz + 5Ghz) and dual SIM. It is qualified for M2M (Machine to Machine), IoT (Internet of Things) and In-Vehicle applications.
With an extensive list of safety and hardening certifications, the H900 is engineered to protect against extreme temperatures, humidity, shocks, vibrations, dust, reverse polarity, and transient voltage, which is widely used in more than twenty industrial fields, such as CCTV security surveillance, vehicle, Telemetry, vending machines, power control, AMR, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other areas.
H900 Router – Industrial Design, Robust and Working in Wide Temperature Range
E-Lins H900 4G LTE router is Industrial designed, excellent function to ensure 7x24h running in stability and reliability;
Wide range power input with dual types of input supported;
Alloy-metal case, IP30 protection standard;
Quality industrial grade casing provides robust and reliable 4G router for installation in many different environments and operating temperature of -35 Celcius to +75 Celcius.
H900 has a wide range of features including Gigabit Ethernet, 802.11 AC WiFi and USB.
Dual SIM (Failover dual SIM compatibility)
The H900 4G router can can built-in industrial class radio modem module to provide robust and reliable cellular network communications. With SIM slot, users can insert SIM cards to dialup 2G/3G/4G networks directly. H900 is with Dual SIM option for failover applications. The H900 4G router can fail-over to a backup network mobile SIM Card. This means that you can insert two 4G SIM Cards and the router can use the primary 4G SIM and failover to the backup 4G SIM in the event the primary mobile network becomes unavailable.
Dual Band or Tri band Concurrent WiFi with Wave2 and MU-MIMO
The H900 SIM card WiFi router 4G built-in 2.4GHz Wi-Fi default. Option 2.4Ghz + 5GHz dual band or tri band WiFi with concurrent data transmission to achieve high powerful WiFi performance. Also it supports high gain WiFi module including 802.11AC Wave2 and MU-MIMO technology for installation and replacement to meet different WiFi requirement.
With multi radios, H900 gets 2~3 times number of served clients comparing to normal single radio.
With multi data stream, H900 gets 3~4 times data bandwidth comparing to normal single data stream.
With MU-MIMO technology, H900 gets 2~3 times data bandwidth and and number of served clients comparing to normal single radio single data stream.
H900 SIM card WiFi router 4G supports high gain WiFi replacement to meet different applications.
Rich Interface
VPN Safety and Security
Offer more VPN safety application schemes, data transmission reach to financial grade standard.
E-Lins H900 wireless router supports APN/VPDN private networks, also including various VPN access such as IPSEC, PPTP, L2TP, GRE,OPENVPN, DMVPN, etc. including the function of VPN client and server. Add one more channel of encryption communication under the base of special network can fully guarantee the safety and accuracy of data of dealing and management.
Dual Power Input
The H900 Dual SIM 4G Router supports wide voltage range of 5V to 40V DC (option up to 60V DC) and has two power inputs so if the primary power fails then the modem will automatically use the second power supply without link downtime.
Three Types of Installation (Din-rail, wall-mount, Desktop)
GNSS / GPS is supported
Elins NMS -Multi-Management Network Management System.
Supporting Web GUI, Telnet SSH Command, SMS, TR-069, SNMP, and NMS (E-Lins Network Management System), users can manage and control the H900 easily and flexibly.
All E-Lins communication terminals can be connected to the E-Lins remote managing and controlling platform (NMS), which brings the generous devices scattering in different areas to carry out concentrate monitor, configuration, updated, diagnose, maintenance, manage and control. Highly reduce the maintenance costing in the operator, integrator, devise supplier etc, increase the managing efficiency.
H900 Features Overview
The E-Lins industrial routers have been specially designed to be installed in extreme environmental conditions such as exterior racks, urban elements (street lights, information screens, bus stops, etc.), industrial warehouses, production lines, vehicles, exterior telesurveillance systems, etc.
Highly resistant elements have been used to design and manufacture these industrial routers, both electrically as well as mechanically and resistance to extreme temperatures has been priorized by using low consumption components and increasing ventilation.
E-Lins has developed an industrial wireless router H820, which also has ADSL. This industrial 2G/3G/4G router possesses specific characteristics which has enabled it to comply with the demanding requirements impossed by the utilities market (suppliers of Electricity, Gas, etc.), hence making it compliant with most industrial router scenarios. What This Product Does
et and share the freedom of 2G/3G/4G! The H820 2G/3G/4G Wireless N Router allows users to share mobile 2G/3G/4G broadband connection with machines nearly anywherein 2G/3G/4G coverage. Insert a SIM/UIM card (some networks flash the SIM/UIM card into the router), with simple configuration, a cellular broadband connection is created, and Wi-Fi hotspot is instantly established.
2G/3G/4G Wireless Sharing
H820 series router features blazing high speed, allowing users to share a 2G/3G/4G mobile broadband with different devices via wired or wireless connection.
Tests in the Field-High Compatibility
Compatibility is the most important aspect to consider when you’re selecting a 2G/3G/4G router. To ensure the best compatibility, E-Lins has made certain that our 3G/4G Routers are compatible with the ISPs in the regions in which they are sold. We have teams around the globe continually testing our Routers with the networks and carriers to ensure that end users can feel confident that their routers will operate flawlessly where they live and work.
2G/3G/4G and Wired WAN Connection Redundancy (Backup Strategy)
The H820 Router stands out with its 2G/3G/ 4G and WAN connection back-up, which keeps users online when one connection fails. E-Lins’ 2G/3G/4G Router provides users with both 2G/3G/4G Preferred and Wired WAN Preferred back-up modes, while other brands provide one or the other. This brings users a high degree of flexibility when users are setting up the networks with considering connection costs and length of downtime.
Wireless N Speed & Range
Complying with the IEEE 802.11n standard, H820 Router can establish a WiFi wireless network with transmission speeds of up to 150Mbps, while mitigating data loss over long distances and through obstacles in a small area locally. Above all, users can easily pick up their wireless network’s signal at longer distances from the router, where with legacy 11g products they would have to be much closer.
>> Highlights
Compatible with LTE/DC-HSPA+/HSPA+/HSUPA/HSDPA/UMTS/EDGE/GPRS/GSM/CDMA1x/CDMA2000 EVDO networks, tested in the field (refer to datasheet for details).
2G/3G/4G and WAN connection Backup guarantees an “Always-online” Internet connection
Industrial class,with sim card slot
Interface: 1 WAN RJ45 port, 4 LAN RJ45 Ports (WAN RJ45 can convert into LAN R45 to get 5 LAN RJ45 ports)
Optional additional port: RS232 or RS485 port
Band: UMTS HSDPA/HSUPA/HSPA/HSPA+/DC-HSPA+: 2100Mhz or 850/1900/2100Mhz or 850/900/1900/2100Mhz/AWS;
EDGE/GPRS/GSM: 850/900/1800/1900Mhz;
CDMA1x/EVDO: 800/1900Mhz or 450Mhz optional;
LTE: Band 1–2100Mhz,Band 2–1900Mhz,Band 3–1800Mhz,Band 4– AWS,Band 5–850Mhz,Band 7–2600MHz,Band 8–900Mhz,Band 12–700Mhz,Band 13–700(B13)Mhz,Band 17–700(B17)/AWS,Band 20–DD800Mhz,Other FDD LTEband…
VPN(PPTP,L2TP,IPsec,GRE),SNMP,VRRP,DDNS, DHCP, NAT/NAPT,Web,Auto-dial,always online,watch-dog;
Line WAN(xDSL), Cellular, WiFi Client can backup, two H800 can work as dual sim dual module backup
Option feature:
1) MIMO Cellular diversity receiving (with this feature, router can get better signal and speed)Â
2) WiFi FeatureÂ
3) GPS featureÂ
4) Serial to cellular feature, RS232 or RS485 can choose oneÂ
5) DC5V~50V (default is DC5V~40V)Â
6) I/O ports
7) Dynamic Route BGP, OSPF
Industrial Application Remote Data Monitor and Control
CCTV, security surveillance
Water, gas and oil flow metering and schedule
AMR (automatic meter reading)
Power station monitoring and control
Remote POS (point of sale) terminals, ATM,
Traffic signals monitor and control, Traffic info guidance
Oil field, weather forecast, environmental protection, street lamp monitoring and control
Early Warning of Mountain Torrent
Fleet management
Power distribution network supervision
Central heating system supervision
Weather station data transmission
Hydrologic data acquisition
Vending machine
Telemetry, SCADA
Vehicle logistics and diagnostics controlling
Parking meter and Taxi Monitor
Telecom equipment supervision (Mobile base station, microwave or optical relay station) etc.If you need an Industrial Grade 5G Router then you should consider using the Elins H900 5G Router.
H900 Specification
| Main Feature | |||
| WAN | Dual Cellular 2G/3G/4G WiFi as WAN Failover/Failback and Load Balance (Bandwidth bonding) Advanced Modem Failure Check IP Passthrough WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual, standby) |
||
| LAN | DHCP Server, Client, Relay DNS and DNS Proxy DDNS UPnP DMZ Multicast/Multicast Proxy QoS (DSCP and Priority Queuing) MAC Address Filtering VLAN 802.1Q |
||
| WiFi | Option: 2.4GHz, 5G Band1, 5G Band4, Dual-Concurrent 802.11 a/b/g/n/ac, MU-MIMO Wave2 Up to 128-250 connected devices (64 per channel – 2.4 GHz and 5 GHz) WPA2 Enterprise (WiFi) Hotspot/Captive Portal SSID-based Priority |
||
| VPN AND ROUTING | IPsec Tunnel, PPTP, L2TP, GRE Tunnel, OpenVPN (option), DMVPN (option); OSPF/BGP/RIP, Virtual Server/Port Forwarding, IPv6 (option), VRRP; |
||
| MANAGEMENT | E-Lins Enterprise Cloud Network Management System (NMS) Web UI, API, CLI/SSH/Telnet Data Usage Alerts (router and per client) Advanced Troubleshooting (support) Device Alerts SNMP SMS control TR-069 |
||
| SECURITY | RADIUS and TACACS+ support 802.1x authentication for Ethernet Certificate support ALGs MAC Address Filtering Advanced Security Mode (local user management only) Per-Client Web Filtering IP Filtering Content Filtering (basic) Website Filtering Zone-Based Object Firewall with host address (IP or FQDN), port, and mac address Other Details: NAT, SPI, port blocking, service filtering (FTP, SMTP, HTTP, RPL, SNMP, DNS, ICMP, NNTP, POP3, SSH), protocol filtering, WAN ping (allow/ignore) |
||
| OPTIMIZED IP COMMUNICATIONS | Automated WAN Failover/Failback support WAN Affinity and QoS allow prioritization of VoIP services Advanced VPN connectivity options to HQ SIP ALG and NAT to allow VoIP and UC communications to traverse firewall MAC Address Filtering 802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN Private Network support (wired and 3G WAN) |
||
| Firmware update | support firmware update locally, remotely (LAN, WiFi and OTA WAN) and RMS (Remote Management System) option; | ||
| DI/DO (Digital Input and Output) | 4 ports, 0-3.3V. Support status monitor via SMS and Email; Option: customers can order E-Lins switch control board (5-40VDC supported) |
||
| Others | Cellular and WiFi MIMO supported; Syslog (local and remote); DDNS; DNS proxy; Optimized EMC design; Real-time clock (NTP, support update with defined hours); WAN/LAN/Memory statistics; Local/remote profiles backup and retrieve; |
||
| Feature Details | |||
| Redundancy and Load Balancing | Failover/failback with 4G, 3G, 2G; WAN failure detection, VRRP; Auto-dial feature, keep alive link; LCP, ICMP check; Built-in watch dog; Cellular (2G/3G/4G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client three line redundancy; Option Feature: Ethernet with rule selection, advanced load balancing options (round robin, spillover, data usage, rate) |
||
| Intelligent Routing | UPnP, DMZ, virtual server/port forwarding, routing rules, NAT-less routing, wired or wireless WAN-to-LAN IP passthrough, route management, per-interface routing, content filtering, IP filtering, website filtering, per-client Web filtering, local DHCP server, DHCP client, DHCP relay, DNS, DNS proxy, Split DNS; ALGs: PPTP, SIP, TFTP, FTP, IRC; MAC address filtering, Dynamic DNS, LAN/WAN affinity, VLAN 802.1Q (coming Q4), STP, enterprise routing protocols: BGP/OSPF/RIP, multicast proxy support, IP setting overrides, IPv6 support option; | ||
| Management | web-based GUI (local management), optional RADIUS or TACACS+ username/password; remote WAN web-based management w/ access control (HTTP, HTTPS); SNMP v1, v2c, & v3; CLI over SSH, SSH to serial, SSH to telnet; API; one-button firmware upgrade; modem configuration, update, and management; modem data usage w/ alerts, per-client data usage; custom AT scripting to modems; SMS; TR-069; Option: Enterprise Cloud Remote Management System (RMS): cloud-enabled management and application platform (subscription-based); |
||
| VPN | IPsec – Tunnel, NAT-T, and transport modes; connect to E-Lins, Cradlepoint, Cisco/Linksys, CheckPoint, Watchguard, Juniper, SonicWall, Adtran and others; Hash (MD5, SHA128, SHA256, SHA384, SHA512), Cipher (AES, 3DES, DES); GRE tunneling; PPTP support; L2TP, L2TP over IPSec support; VPN pass-through; OpenVPN support (option); DMVPN (option); Certificate support (option); multiple networks supported in a single tunnel, site-to-site dynamic VPN with NHRP; VTI Tunnel support; |
||
| SMS, SMS Control and Alarm | Receive and Send the SMS; WAN Cell APN configuration via SMS; SMS/Voice Control and Alarm. SMS or Call to control router to be online, offline, reboot, signal and status monitor; SMS is default feature, Voice is option; SMS text sending and receiving; |
||
| Specifications | |||
| Main | |||
| Hardware | CPU: 880Mhz dual core; RAM: 2Gb DDR3, option for up to 4Gb DDR3; Flash: 128Mb, option for up to 8Gbit; |
||
| WAN | Integrated Category 16/12/9/6/4/3 LTE Advanced LTE modem (with DC-HSPA+/ EVDO/3G and 2G failover); One 10/100/1000Mbps Gigabit Ethernet ports – cable/DSL/T1/satellite/Metro Ethernet; WiFi as WAN, Metro WiFi; MIMO “N” 2.4 GHz; 802.11 a/b/g/n/AC; |
||
| LAN | Single band, Dual band or Tri-band, dual-concurrent WiFi; 802.11 a/b/g/n/AC; Three LAN/WAN switchable 10/100/1000Mbps Gigabit Ethernet ports; Two LAN 10/100Mbps Fast Ethernet ports; |
||
| Ports | Power (POE, 2 Pin Terminal Block for wire connection) 5 Ethernet LAN/WAN 2~8 cellular antenna connectors (SMA) 1 GPS antenna connector (SMA) 2~8 WiFi antenna connectors (SMA) Serial connector *2 – RS232 / RS485 (DB9*1 + Terminal Socket*1) 4 Digital I/O ports (Terminal Socket) USB port Console Port (RJ45 port, Terminal Socket) |
||
| Power | Dual Power Inputs / Power Failover; DC input steady state voltage range: 5-40 VDC / 5-60VDC option, (requires inline fuse for vehicle installations); For 9–24 VDC installations, use a 3 A fuse; For > 24 VDC installations, use a 2.5 A fuse; Reverse polarity and transient voltage protection per ISO 7637-2 Ignition sensing (automatic ON and time-delay OFF); Power consumption: Idle: typical=100mA@12VDC; Maximum=500mA@12VDC; Tx/Rx: typical=300mA@12VDC; Maximum=800mA@12VDC; 12VDC 2A adapter recommended |
||
| LEDs | SYS, ERR, VPN, WiFi, USB, WAN, LAN*4, SIM1 Online, SIM2 Online, Signal1, Signal2, Signal3 | ||
| UIM/SIM Card Slot | Support 1.8V/3V UIM/SIM cards, two sim card slots | ||
| Others | Reset button, console port | ||
| Size | PCBA: 128mm x 108mm x 29mm With case: 132mm x 112mm x 45mm |
||
| Weight | About 410g (not including the antenna) About 550g (including the antenna) About 750g (including all accessories, without package) |
||
| Temperature | All models: −35 °C to 75 °C ambient air operating; All models: −40 °C to 85 °C storage; |
||
| Humidity (non-condensing) | 5% to 95% operating 5% to 95% storage |
||
| Case | Aluminum alloy; Black color; Customization is available | ||
| Cellular | |||
| Compatible Mobile Networks | 4G LTE (FDD/TDD) 3G UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+) GSM EDGE/GPRS CDMA1x CDMA2000 EVDO Rev 0, Rev A, Rev B TD-SCDMA/TD-LTE |
||
| Cellular Frequency | 4G FDD LTE: Band 1–2100Mhz Band 2–1900Mhz Band 3–1800Mhz Band 4–AWS(1700/2100Mhz) Band 5–850Mhz Band 7–2600MHz Band 8–900Mhz Band 9 – 1700Mhz Band 12–700Mhz Band 13–700(B13)Mhz Band 14 – 700Mhz Band 17–700(B17)/AWS Band 18 Band 19–800Mhz Band 20–DD800Mhz Band 21 Band 25–1900Mhz G Block Band 26 Band 28– 700Mhz Band 29 Band 30 Band 31– 450Mhz Band 32 – 1500Mhz (SDL) Band 66 – 1700Mhz Band 72 – 450Mhz Other FDD band…4G TDD LTE (TD-LTE): Band 48 – 3600Mhz (CBRS) Band 46 – 5200Mhz Band 43 –3600-3800Mhz Band 42 –3400- 3600Mhz Band 41–2500/2600Mhz Band 40–2300Mhz Band 39–1900Mhz Band 38–2600Mhz Other TDD band…3G UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD): 2100(B1)/1900(B2)/1800(B3)/ 1700/AWS B4/850(B5)/900(B8)/800(B6)/1800(B9)/850 (B19) Quad-band EGSM 850/900/1800/1900Mhz; Notes: There are many different band and frequencies. Please confirm the detailed band and frequency with your carriers before order. |
||
| Bandwidth | 4G LTE FDD LTE: downlink 100Mbps / 150Mbps / 300Mbps / 600Mbps / 1200Mbps; uplink 50Mbps / 150Mbps / 300Mbps / 600Mbps; TDD LTE: 150Mbps downlink, 50Mbps uplink;DC-HSPA+: Downlink 42Mbps, Uplink 5.76Mbps; HSPA+(H): Downlink 21Mbps, Uplink 5.76Mbps; HSPA+(L): Downlink 14.4Mbps, Uplink 5.76Mbps; HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps; HSDPA: Downlink 7.2 Mbps, Uplink 384k bps; WCDMA/UMTS: Downlink/Uplink 384 kbps; 3G TD-SCDMA: 2.8Mbps CDMA EVDO: Rev B: 14.7Mbps downlink, 5.4Mbps uplink Rev A: 3.1Mbps downlink, 2.4Mbps uplink Rev O: 2.4Mbps downlink, 153.6kbps uplinkEDGE: Downlink 384 kbps, Uplink 118 kbps; GPRS: Downlink 108 kbps, Uplink 42.8 kbps; CDMA1x: Downlink/Uplink 153.6kbps; Notes: the bandwidth is peak value. Real value depends on carrier network support. |
||
| Network and Band Lock Feature (Option) | Default is unlocked, can use this feature to lock | ||
| WiFi (WLAN) | |||
| Wi-Fi | 802.11a/b/g/n/AC; Can be used as AP and client;Frequency Range: 2.412 ~ 2.472Ghz 5Ghz Band 1: 5150~5250MHz 5Ghz Band 4: 5475~5850MHzSpeed: 802.11n in 300Mbps; 802.11AC options in 600Mbps, 867Mbps, 1300Mbps, 1730Mbps, 2033Mbps, or even higher (Depends on WiFi module option); |
||
| Others | |||
| Warranty | 1 Year default. Option extends up to 5 years maximum; Other warranty services can be customized; |
||
| Package Contents | H900 Series wireless Router Ethernet Cable Power Adapter Cellular Antenna, WiFi Antenna Others depends on option features (GPS antenna, Serial Cable, etc.) |
||
| OEM / ODM Services | Yes | ||
Using the H900 with a Fixed IP SIM Card
If you need remote access to your Elins H900 router then we recommend using a Fixed IP SIM Card. You can obtain a Fixed IP SIM card with either a public or private IP address. A Fixed IP SIM with a public IP address will enable you to connect to your E-Lins 4G router from anywhere on the Internet, but have caution with this type of publicly accessible fixed IP sim card becuase it means that anybody can have access to your IP address. Make sure that you change the default user name and password of your Elins H900 M2M router as well as disable telnet and SSH to prevent unauthorised access to your router and prevent any fraud or other infectious or malicious use of your M2M router. This also means that when using a public IP Fixed IP SIM you will be using port forwarding to connect to your devices on the LAN, eg. CCTV NVR, so you will need to ensure that all your connected devices which are accessible via port forwarding rules in the H900 also have their full security features enabled and all the default user names and passwords changed. If you have a Fixed IP SIM Card with a private IP address then the router is not accessible from the Internet. In order to connect to your router you will first of all need to create a VPN from your PC to your Fixed IP SIM provider at which point your private IP address allocated to the router is now accessible and you can communicate with your router and connected devices. With a private IP fixed IP SIM card you are creating the VPN between your PC and your Fixed IP SIM provider – you are not creating a VPN to your router, which you will not be able to do directly from the Internet because the router is not directly accessible from the public Internet.
